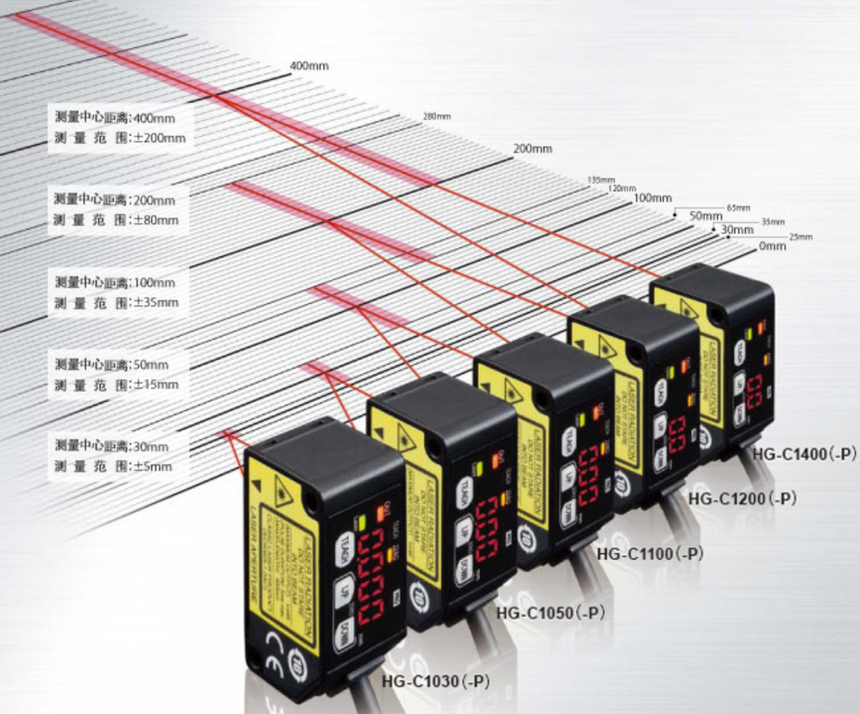

HG-C1100 is a background suppression distance sensor produced by Panasonic, belonging to the HG-C series of products. This product adopts a laser light source and NPN output method, mainly used for precise measurement of the position and displacement changes of objects
Technical Specifications
| Parameter | Specification |
|---|
| Detection Range | 100mm |
| Power Supply Voltage | 12V ~ 24V DC |
| Response Time | 1.5ms |
| Light Source Type | Red Laser Diode (655nm) |
| Protection Rating | IP67 |
| Operating Temperature | -10°C ~ +45°C |
| Cable Length | 2 meters |
| Repeatability | 70μm |
| Beam Diameter | Approx. ø120μm |
| Output Type | NPN |
| Mounting Method | Flange Mounting |
| Housing Material | Acrylic (Front Cover), Aluminum Die Cast |
Key Features
High Precision Measurement: Achieves measurement accuracy up to 0.01mm, meeting demanding precision requirements
Fast Response: Response time less than 50ms, suitable for high-speed moving object detection
Programmable Functionality: Supports flexible parameter configuration including measurement range, resolution and response time adjustments
Alarm Function: Provides alerts based on preset conditions for immediate notification of abnormalities
Compact Design: Small form factor ideal for installation in space-constrained applications
Strong Anti-Interference Capability: Maintains stable measurement results even in complex environments
Easy Installation: Features user-friendly operation panel with intuitive buttons and indicators for simple setup and wiring
Application Scenarios
The HG-C1100 laser displacement sensor is widely used in various industries:
Automated Production Lines: Detects product dimensions, shapes and positions to ensure quality control
Machine Vision Systems: Enables high-precision positioning and measurement
Material Handling: Monitors object position and height to improve handling efficiency
Scientific Research: Provides accurate experimental data collection
Automotive Manufacturing: Verifies body dimensions and welding positions to maintain quality standards
Electronics Manufacturing: Measures precise component placement to enhance assembly accuracy
3D Printing: Monitors layer thickness and position in real-time to ensure printing quality
